WS66i (KIT-Package) Whole-Home Audio Distribution Network Controller Matrix with Streamer & App Control

Product Description

The WS66i whole-home audio system brings you the advanced Generation D technology, it is a functional, easy-to-install, highly compatible, expandable and used-friendly audio distribution system. With few simple steps to install, it provides up to W power by class D amplifier and distribute at most to 18 zones which all can be controlled by packaged keypads, IR remote controller or APP.


Simply connecting the WS66i to the local Ethernet network, it let you access a wide variety of music from the Built-in streaming services or stored on the Smartphones. Two USB ports on the front panel for playing music files from USB storage devices. An Optical digital input to manage the sound of a flat screen or a CD player to have high resolution of sound quality in each zone. The overall distribution system including package device is easy-to-install, so every audiophile in every zone can use IR controller or keypads to enjoy the powerful audio. High functionality and performance bring you musical enjoyment just the way you want it.

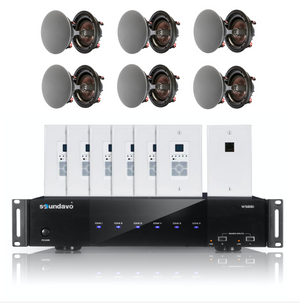

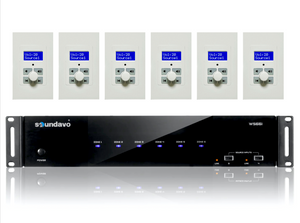

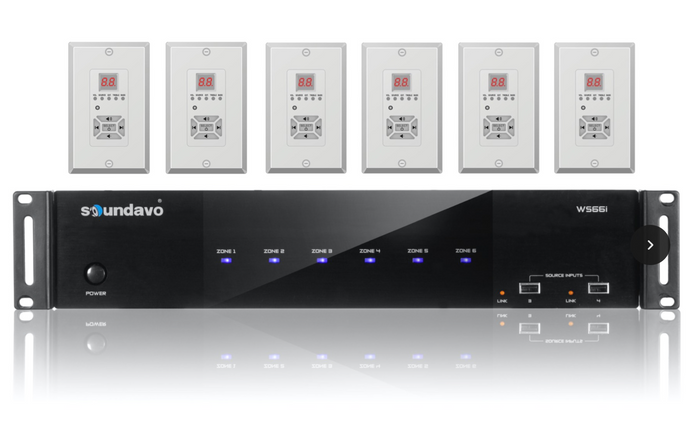

WS66i-KIT Package Included:

WS66i Amplifier x 1
Zone Keypad x 6
Remote Control x 1
RJ-45 connection Hub x 1
Expansion Ribbon Cable x 1
Power Cord x 1
User Manual x 1

Features:
- Stream your favor music from tablet or smart phone or use all the most popular streaming services
Supports AirPlay/DLNA/UPnP, NAS and Local(on device) music play and a wide range of online music services including TuneIn,Spotify, DEEZER, iHeartradio and more. APP also with lots of free online music library for searching and play.Compatible with iPhone,iPad, Android Smart Phones and tablets,Mac and Windows laptops,NAS,etc.
- Each zone provides 100W output power
- High efficiency more than 85% Class D amplification
- 6 Line input sources, including 2 Audio Streamer (Input 3, 4)
- USB inputs for playing music files from USB sticks (Input 3, 4)
- Each zone Stereo/Mono output selectable
- Enable control over Ethernet
- PRE-AMP output on Zone1~6

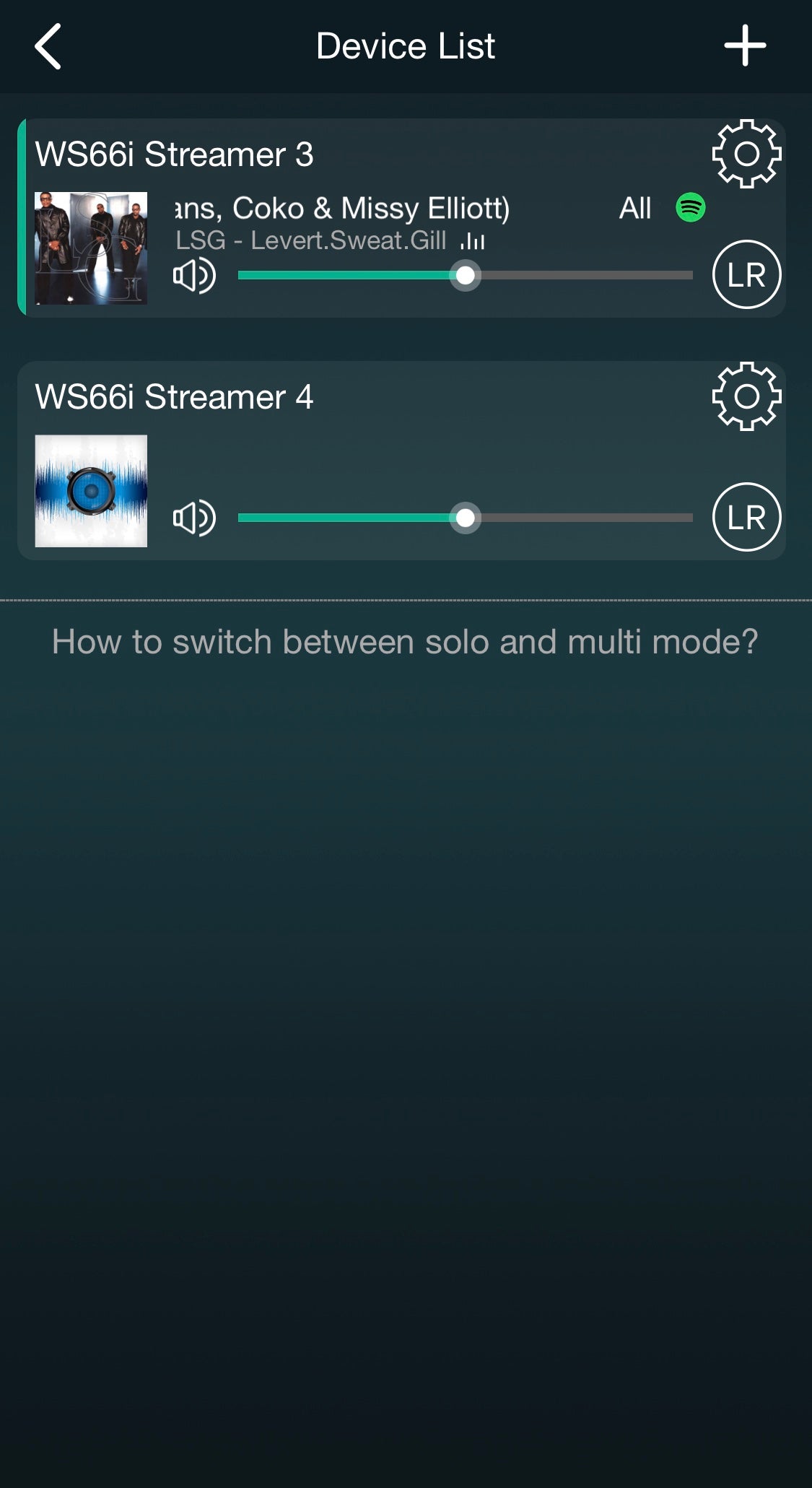

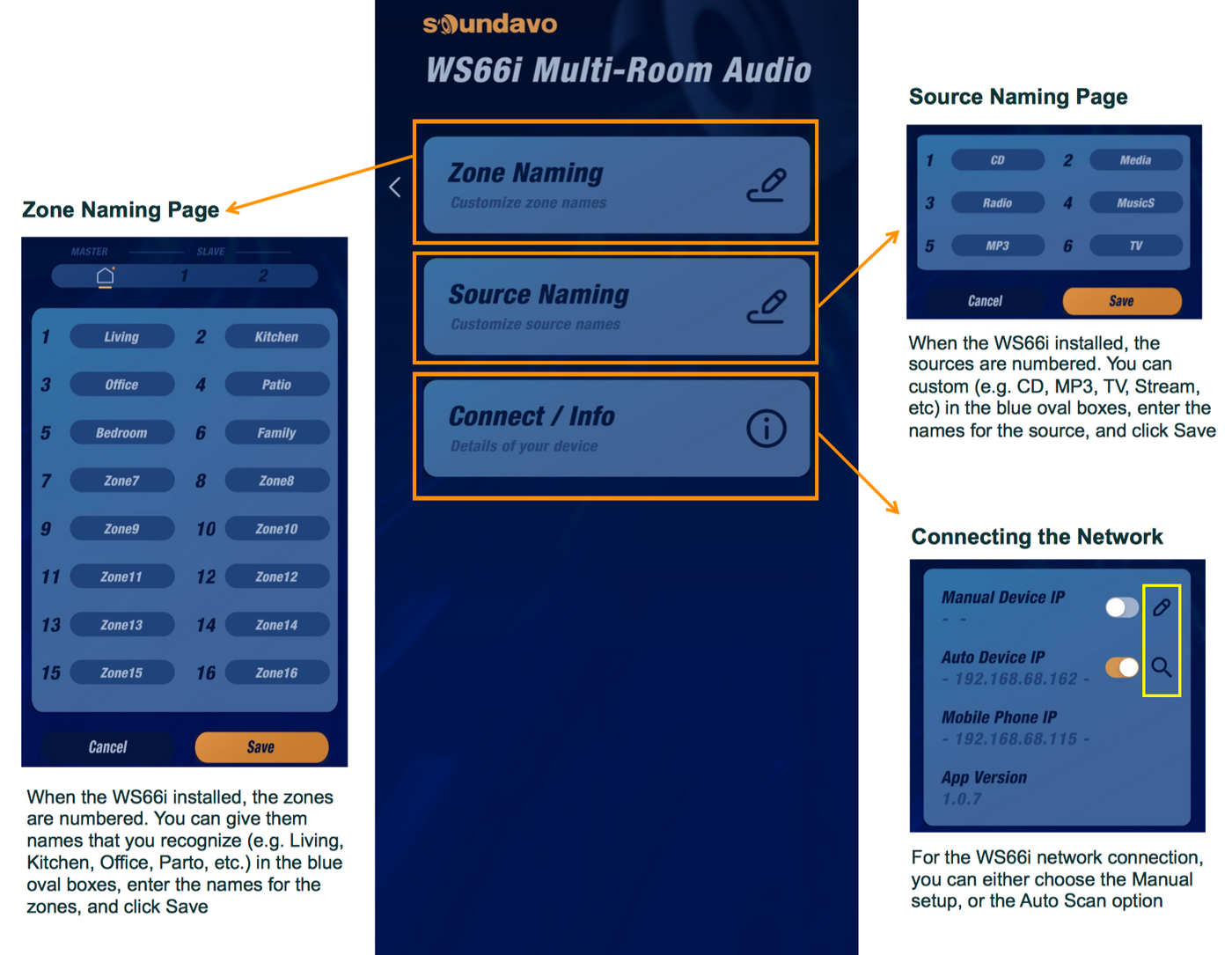

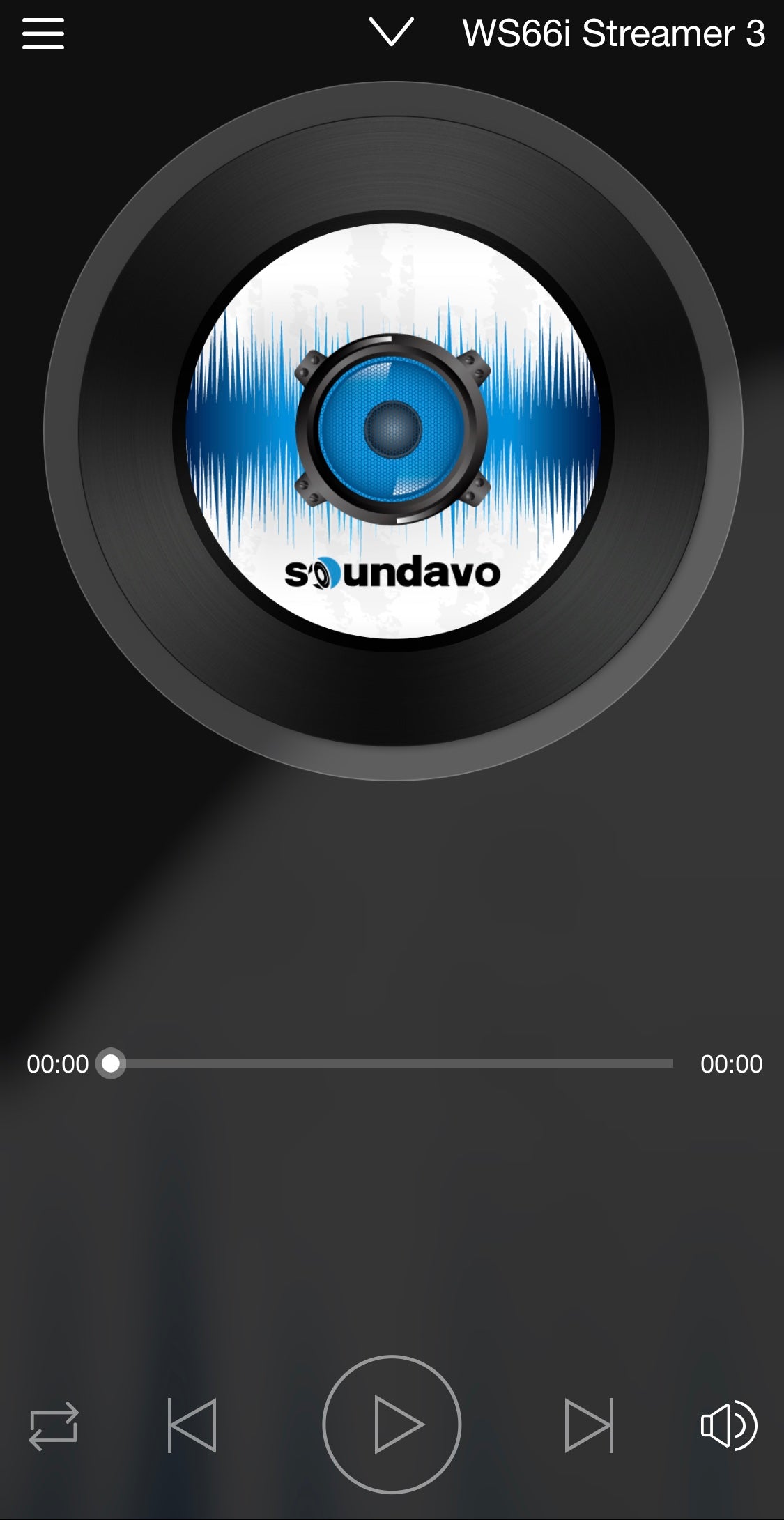

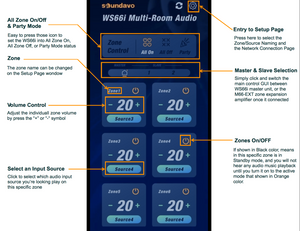

- Support Control APP / Software
-Built-in IR receiver & IR remote controller for Source select/Volume/Treble/Bass
- 12V DC trigger output to external device when the system is power on
- 12V DC mute trigger input from the external devices
- RJ45 Ethernet port for the wired connection to the local network
- Another RJ45 Ethernet expansion port for connecting with PC or other device
- RS-232 port allows 2-way communication with the Home Automation system
- Distribute 6 stereo audio signals to 6 rooms simultaneously (expandable up to 18 Zones by additional 2 units)

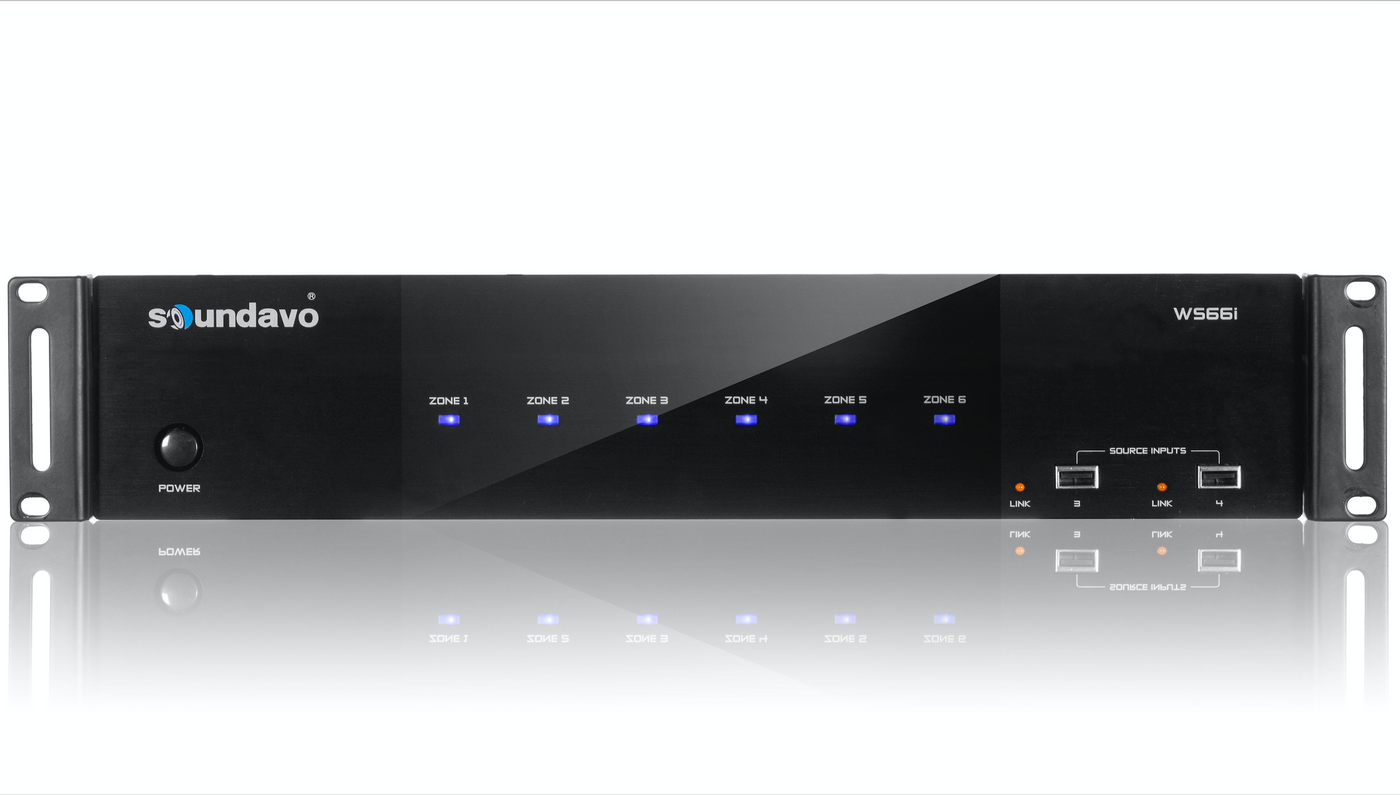

- 6 LEDs for 6 zones Power On, Standby and Mute
- Built in IR emitter
- AC 115V / 230V input power switchable

Specification:
Output Power: 25W x 2 per zone (at 8Ω)
Output Power: 50W x 2 per zone (at 4Ω)
Output Power: 100W per zone (Bridged at 8Ω)
S/N: >85dB A WTD
THD: <0.1%
Frequency Response: 20Hz-20KHz
Input Impedance: >47 K Ohm
Input Sensitivity: 250 mV
Protection Function: Overload, Short Circuit
System on Voltage: DC +12V
External Mute Voltage: DC +12V
Power Supply: AC115V/60Hz, 230V/50Hz

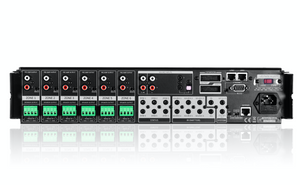

Output Connection: 4P Terminal Block
Input Connection: Input 1, 2 - RCA Jacks
Input 3, 4 – Streaming or USB
Input 5 – 3.5mm Jack
Input 6 – S/PDIF, 3.5mm Jack
Sampling Rate (Streaming): Up to 192KHz
Audio Format(USB): MP3/WMA/AAC/AAC+/ALAC/FLAC/APE/WAV
USB type: USB2.0, Support up to 64G.
Network: RJ45, Standard 10/100Mb
Dimension: 430mm x 89mm x 416 mm (WxHxD)
Weight: 12KG
Standard Package: Keypad x 6, Remote Control x 1, RJ-45 connection Hub x 1,
Expansion Ribbon Cable x 1
Vendor: Soundavo
